Bluesun Rechargeable DC To AC 3 Phase 10KW 20KW 400V Solar Inverter

  • 50 - 499 Pieces
    $1,160.00
  • 500 - 999 Pieces
    $950.00
  • >=1000 Pieces
    $725.00
Application:
On-Grid Solar System
Output Power:
10kw
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 3 7 10 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$1,160.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Bluesun
Model Number:
BG10KTR
Input Voltage:
150V-1000V
Output Voltage:
AC380-400V
Output Current:
14A
Output Frequency:
50/60HZ
Output Type:
TRIPLE
Size:
575*360*150mm
Type:
DC/AC Inverters
Certificate:
CE/VDE 0126-1-1/EN50438,IEC62109, CE/VDE 0126-1-1/EN50438,IEC62109
Weight:
25kgs
Display:
LCD
Application:
Grid Tie 10KW Solar Panel System
On grid inverter:
10kw grid tie inverter
Topology:
Transformerless
DC Switch for each MPPT:
Yes
Operating temperature range:
-25℃-+60℃
Grid monitoring:
Yes
DC reverse polarity protection:
Yes
Environmental Protection Rating:
IP65
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week 5kw Solar Inverter Price
Packaging & Delivery

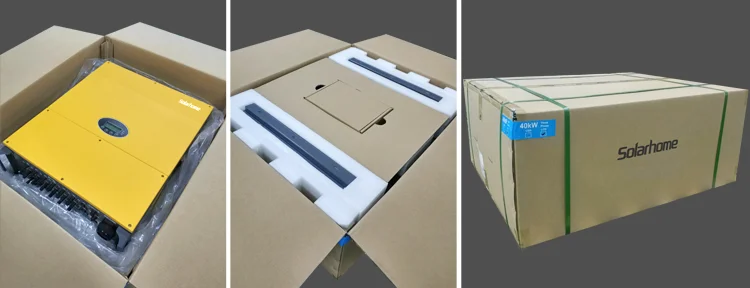

Packaging Details
In well protected carton with pallet
Port
Shanghai or Ningbo
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 3 7 10 To be negotiated

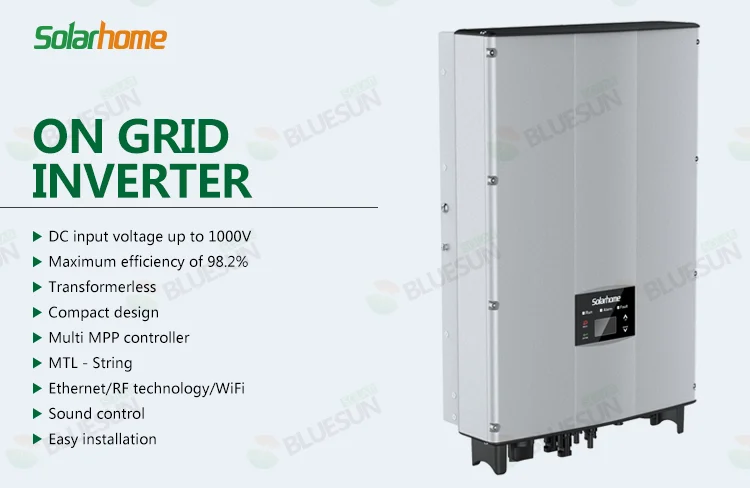

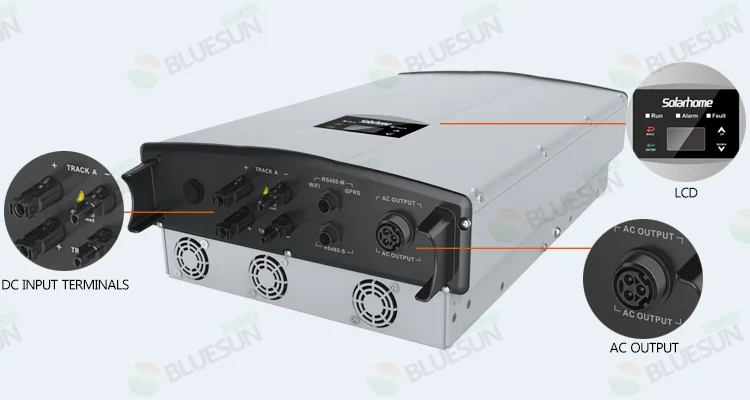

Grid Tie Inverter

Equipments&Details
Model number
BG4KTR
BG4KTR-S
BG5TR
BG5TR-S
BG6KTR
BG8KTR
BG10KTR
Input DC
Max. DC input power (W)
4200
4200
5200
5200
6300
9000
10000
Max. DC input voltage (V)
900
1000
Starting voltage (V)
220
Min. opration voltage (V)
180
150
MPPT Range(V)
200-800
Number of MPPT /string per MPPT
2/1
1/1
2/1
1/1
2/1
2/1
2/1
Max. DC current (A) Per MPPT
10
12
10
12
10
12
12.5
Output AC
Rated output power (W)
4000
4000
5000
5000
6000
8000
10000
Max. AC output current(A)
6.4
6.4
8
8
9.6
12.5
14
Grid voltage range
3/PE, 230/400V, (320~460V);3/PE,220/380V,(320~460V)
Grid frequency range
50Hz(47~51.5Hz) / 60Hz(57~61.5Hz)
AC output
Three-phase (L1, L2, L3, N, PE)/(L1,L2,L3,PE)
System
Cooling method
Natural cooling method
Smart cooling method
Max. efficiency
98.1%
98.1%
98.2%
98.3%
Euro. efficiency
97.5%
97.6%
97.7%
97.8%
MPPT efficiency
99.9%
Protection rating
IP65
Self-consumption(at night)(W)
<0.5
Topology
Transformerless
Operating temperature range
-25℃~+60℃(derate after 45℃)
Relative humidity
0~95%,no condensation
DC connection
MC4
Dimension
530*360*150
575*360*150
Weight
22
25
Installation
wall mounting
Packing&Delivery
By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
By TNT/DHL
