3kw 4kw 5kw growatt inverter price solar system home on grid solar inverter

  • 10 - 49 Pieces
    $855.00
  • 50 - 149 Pieces
    $790.00
  • >=150 Pieces
    $750.00
Application:
On-Grid Solar System
Output Power:
3600w
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 3 5 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$750.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Growatt
Model Number:
Growatt 3600MTL-S
Size:
355*419*138 MM
Weight:
14KGS
Input Voltage:
70V-550V
Output Type:
Single
Type:
DC/AC Inverters
Output Voltage:
AC220V/230V/240V
Output Frequency:
50/60HZ (Auto sensing)
Output Current:
16.3A
On grid inverter:
Growatt Solar Panel Inverter
Certificate:
CE/VDE 0126-1-1/EN50438,IEC62109
Application:
Grid Tie Solar Power System
Operating temperature range:
-25℃-+60℃
Display:
LCD
DC reverse polarity protection:
Yes
DC Switch for each MPPT:
Yes
Environmental Protection Rating:
IP65
Grid monitoring:
Yes
Topology:
Transformerless
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
In well protected carton with pallet
Port
Shanghai or Ningbo

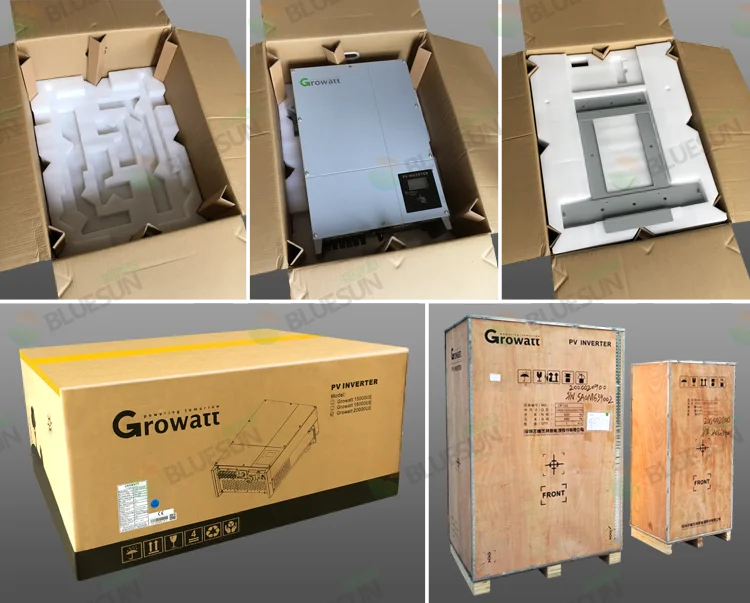

Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 3 5 7 To be negotiated
Video Description

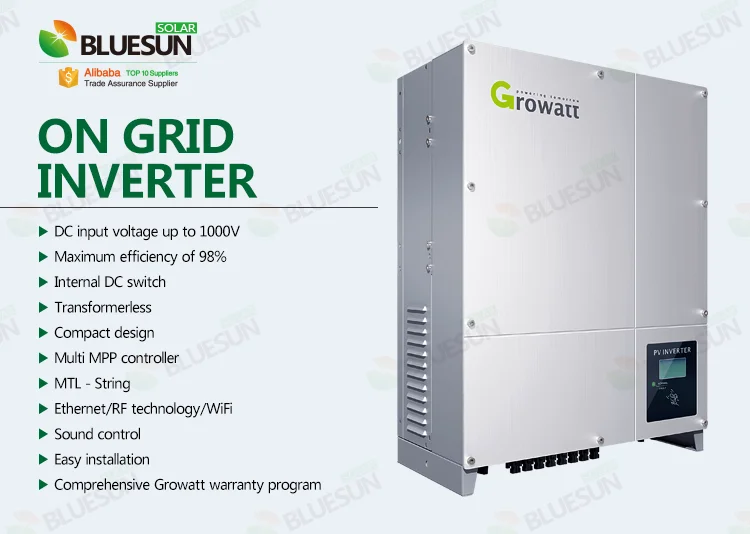

Grid Tie Inverter

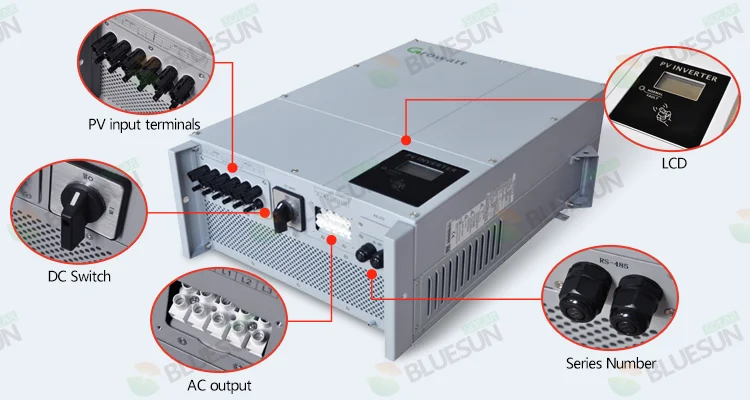

Equipments&Details
Data sheet
Growatt 3600MTL-S
Growatt 4200MTL-S
Growatt 5000MTL-S
Growatt 5500MTL-S
Input data
Max.DC Power
4100W
4800W
5300W
5750W
Max.DC Voltage
550V
550V
550V
550V
Start Voltage
100V
PV Voltage Range
70-550V
MPPT Voltage Range
80-550V/360V
Full Load DC Voltage Range
190-500V
150-500V
160-500V
175-500V
Number of MPP Trackers/
Strings Per MPP Tracker

2/1
Max. Input Current
10A/10A
15A/15A
15A/15A
15A/15A
Max. Input Current per String
10A/10A
15A/15A
15A/15A
15A/15A
Output AC
Rated AC Output Power
3600W
4200W
4600W
5000W
Max. AC Output Power
3600VA
4200VA
4600VA
5000VA
Max. apparent current
16.3A
19A
20.9A
22.7A
AC Grid Frequency;Range AC normal voltage range
50/60HZ
220/230/240V
Power factor at rated power
1
Displacement power factor configurable
0~0.8leading 0.95lagging
THDI
3%
AC connection
Single Phase
Efficiency
Max. efficiency
97.9%
Euro-eta
97.4%
MPPT efficiency
99.5%
Protection Devices
DC reverse polarity protection
Yes
DC switch for each MPPT
Yes
Output AC overcurrent protection
Yes
Output AC overvoltage proection-varistor
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Integrated all-pole sensiteve leakage current monitoring unit
Yes
General data
Dimension(W/H/D)mm
355*419*138
355*374*158
Operation temperatur range
-25~+60degree with derating above 45degree
Self consumption
<0.5W
Standby consumption
12W
Topology
Transformerless
Cooling concept
Smart cooling
Environmental protection rating
IP65
Altitude
2000m
Relative Humidity
100%
Features
DC  connection
H4
AC connection
Connextor
Display
LCD
Interfaces
RS232/RF/WIFI/LAN/GPRS
Warranty
5 years / 10 years (opt)
Packing&Delivery
By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
By TNT/DHL

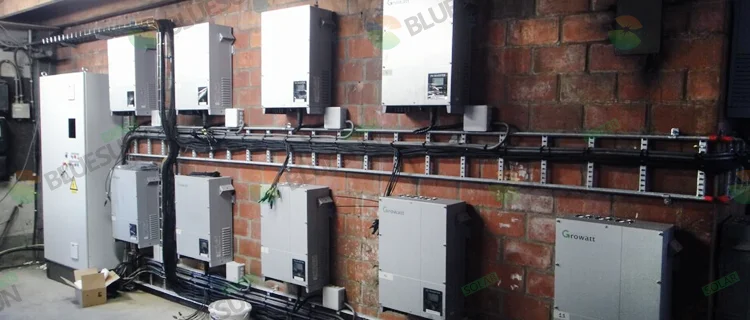

Application

100KW grid tie solar power system in Cambodia

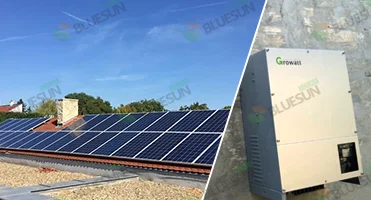

        20KW on grid solar system in Europe                                              200KW on grid solar system in China

1.2MW solar power plant in Malaysia
