250KW Solar System 120KW 200KW 600KW Solar Plant 380W Monocrystalline Solar Panels

FOB Reference Price:Get Latest Price
$0.80 - $1.80 / Watt | 1 Watt/Watts (Min. Order)
Solar Power (W):
120KW
System Type:
Hybrid Solar System
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Bluesun/OEM
Model Number:
BSM120K-HY
Battery Type:
Lead-Acid
Certificate:
CE / CEC / TUV / ETL / Inmetro
Output Frequency:
50/60HZ
Application:
HOME
Work Time (h):
24 Hours
Mounting Type:
Ground Mounting, Roof Mounting, Carport Mounting
Output Voltage (V):
380V/480V
Load Power (W):
120KW
Controller Type:
MPPT, PWM, NONE
Solar Panel Type:
Monocrystalline Silicon, Polycrystalline Silicon
Specification:
Normal
Complete Set:
250KW Solar System
Charger controller:
Built-in MPPT charger
Serve Life:
25 years
Daily Generation:
600KWH (PSH=5)
Min. Space Needed:
660 Square meters
Deep Cycle 48V Battery:
Gel / VRLA / OPzV
Safety Class:
Class A
Technical Support:
Yes
Installation Manual:
Yes
Supply Ability
Supply Ability:
5000000 Watt/Watts per Week
Packaging & Delivery
Packaging Details
In well protected carton with pallet
Port
Shanghai or Ningbo
Video Description
Product Description

Hybrid solar systems combines the best from grid-tied and off-grid solar systems. These systems can either be described as off-grid solar with utility backup power, or grid-tied solar with extra battery storage.

Configuration detail
120KW hybrid Solar Power System Components List
Item
Model
Description
Quantity
1
Solar Panel
Mono 295W OR Poly 285W solar panel
445 pieces
2
Battery
2V 600Ah (adjustable) gel or OPZV battery
210 pieces
3

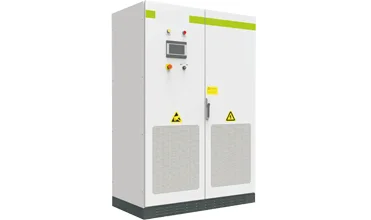

Hybrid Inverter
120KW EU standard
1 piece
4
Mounting Support
Pitched / flat roof, ground
1 set
5
Cable
Single-core 4mm2
2200 meters
6
Connector
PV connector
500 pairs
7
Tools Bag
5 kinds of PV installation tools
1 bag
More details please send inquiry below
Or send email directly to: solar22(@)bluesunpv.com
Mobile / WhatsApp / Viber : 0086-158-5695-2650

Solar Panels

> 25 years Warranty
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance

Charge Controller



> Compatible both grid-tied and off grid
> Built-in MPPT charge current up to 200A

> Be in parallel connection to reach more power

Battery

> Agm Battery
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired together

Accessories

> PV Cable 4mm2 6mm2 10mm2, etc

> AC Cable
> DC/AC Switches

> DC/AC Breakers
> AC/DC Combiner box

> Tools bag

Mounting support

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system

Packing & Delivery
By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
TNT / DHL
Project
Payment






Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Paypal

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
