Bluesun best off grid battery storage 5kw 6kw our solar system planets

  • 5000 - 49999 Watts
    $0.70
  • 50000 - 99999 Watts
    $0.50
  • >=100000 Watts
    $0.40
Solar Power (W):
5kw
System Type:
On-Grid Solar System
Lead Time:
Quantity(Watts) 1 - 5000 5001 - 10000 10001 - 50000 >50000
Est. Time(days) 5 7 15 Negotiable
Customization:
Customized logo (Min. Order: 10000 Watts)
Graphic customization (Min. Order: 100000 Watts)

More

Customized packaging (Min. Order: 50000 Watts) Less
Samples:
$0.60 /Watt | 1 Watt (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Bluesun/OEM
Model Number:
BSM5K-OFF
Battery Type:
Lead-Acid, Lithium Ion
Output Frequency:
50Hz or 60Hz
Application:
HOME, Commercial
Work Time (h):
24 Hours
Mounting Type:
Ground Mounting, Roof Mounting, Ground / Roof
Output Voltage (V):
220v/240v, US: 110/120/208/240/277/480V
Load Power (W):
5kw
Controller Type:
MPPT, PWM or MPPT
Solar Panel Type:
Monocrystalline Silicon, Polycrystalline Silicon, Polycrystalline
Specification:
Normal
Daily Generation:
25KWH (PSH=5)
Min. Space Needed:
32 Square meters
Deep Cycle Battery:
Maintenance-free Gel / VRLA / OPzV
Charge Controller:
PWM or MPPT
Serve Life:
25 years
Safety Class:
Class A
Supply Ability
Supply Ability:
5000000 Watt/Watts per Week
Packaging & Delivery
Packaging Details
In well protected carton with pallet
Port
Shanghai or Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Watts) 1 - 5000 5001 - 10000 10001 - 50000 >50000
Est. Time(days) 5 7 15 To be negotiated
Video Description
Product Description

An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners that have access to the grid, off-grid solar systems are usually out of question. Here's why :

To ensure access to electricity at all times, off-grid solar systems require battery storage and a backup generator (if you live off-the-grid). On top of this, a battery bank typically needs to be replaced after 15 years. Batteries are complicated, expensive and decrease overall system efficiency.
Configuration detail
5KW Off-grid Solar Power System Components List
Item
Model
Description
Quantity
1
Solar Panel
Poly 350W solar panel
16 pieces
2
Combiner Box
8 inputs 2 outputs
1 piece
3
Charge controller
48V 100A
1 piece
4
Battery
12V 100Ah (adjustable)
4 pieces
5
Off-grid Inverter
5000W EU standard or US standard
1 piece
6
Mounting Support
Pitched / flat roof, ground
1 set
7
Cable
Single-core 4mm2 and 16mm2 PV cable
200 meters
8
Connector
pv connector
10 pairs
9
Tools Bag
5 kinds of PV installation tools
1 bag
Or send email directly to: solar21(@)bluesunpv.com

Solar Panels

> 25 years Warranty
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance

Charge Controller



> PWM controller up to 200A
> MPPT controller up to 100A

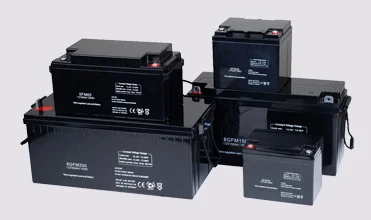

Battery

> Agm Battery
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired together

Off-grid Inverter

> Input Voltage from 12V to 1000V
> Input Ampere 5A to 200AH
> EU Output voltage: 220-240/380-400V

> US Output voltage: 110/120/208/240/277/480V
> Single phase and Three phase

Mounting support

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system

Accessories

> PV Cable 4mm2 6mm2 10mm2, etc

> AC Cable
> DC/AC Switches

> DC/AC Breakers
> AC/DC Combiner box

> Tools bag

Packing & Delivery
By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
TNT / DHL
Project
Our Company
Payment






Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Paypal

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
